With the innovative STEEL cut, PFERD TOOLS has developed unique burrs for working with steel and cast steel. They feature tangibly increased aggressiveness and good guidance. They thus ensure safe and precise work. Thanks to their extremely high stock removal rate, burrs with the STEEL cut help users save considerable time when working, thus making them an economically efficient option.

Specifications:
Cutter Height: 5mm
Cutter Width: 6mm
Shank Diameter: 6mm
Overall Length: 45mm

Quantity:

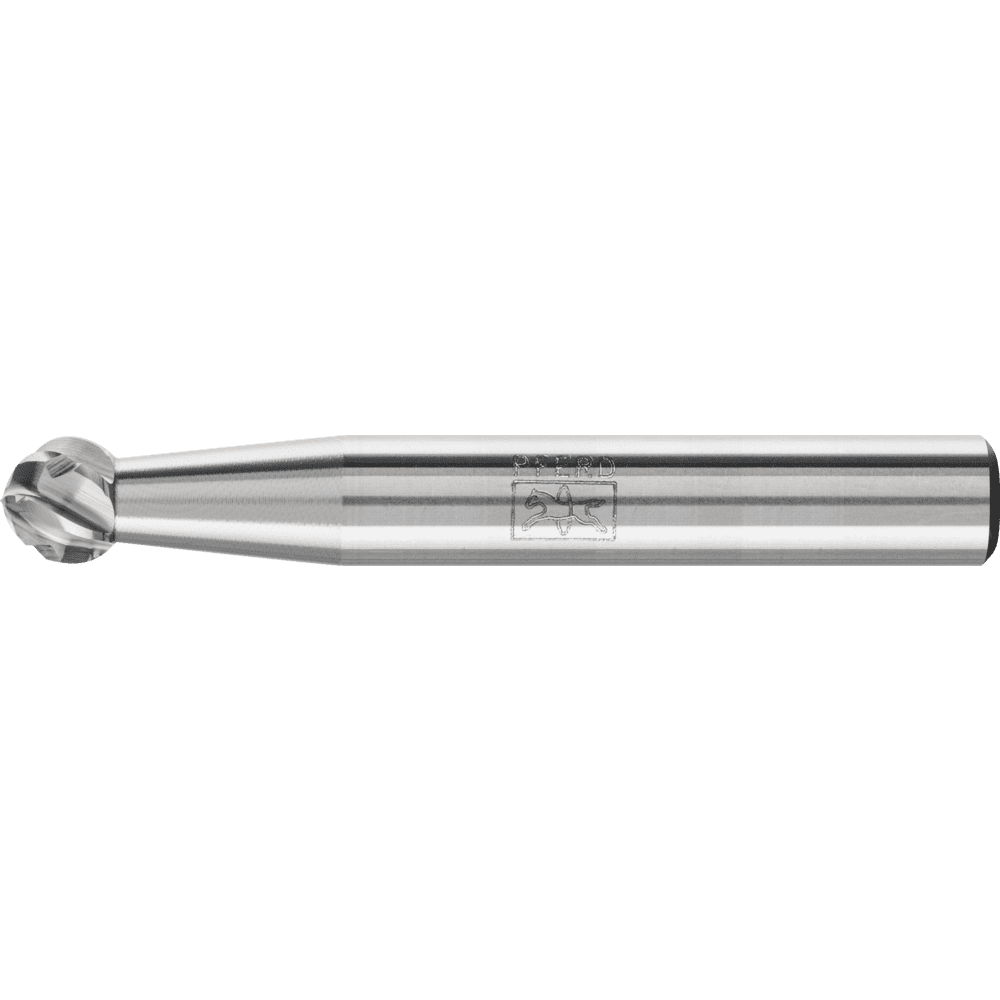

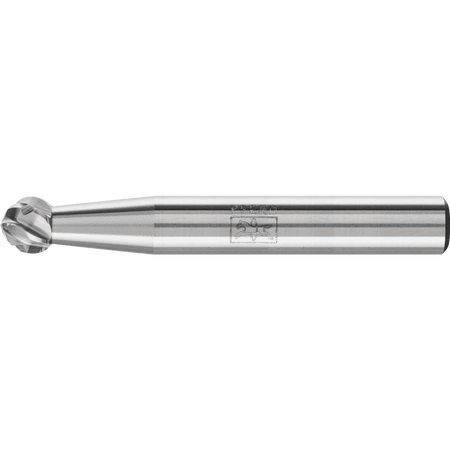

1x Solid Tungsten Carbide Burr

Rotational Speeds (RPM)
Steel and Cast Steel < 38 HRC: 24 000 - 40 000
Steel and Cast Steel > 38 HRC: 24 000 - 40 000

Special features
- Up to 50 % higher stock removal rate when used on steel and cast steel in comparison to conventional cross-cut burrs.
- Tangibly more aggressive, large chips and very good chip removal through the innovative tooth geometry.
- Workpieces are protected through significantly lower thermal load.
- The highly accurate concentricity enables impact-free working without creating chatter marks. This considerably reduces wear on the tool and tool drive.

Recommendations for use
- To prevent vibrations, place the tools on powerful drives with an elastically supported spindle wherever possible.
- Observe the recommended rotational speeds.
- If the smallest area of the burr diameter is being used, the recommended rotational speed can be increased accordingly.
- To ensure cost effective use of burrs, use a higher rotational speed and cutting speed. Use burrs with a shank diameter of 6 mm with drives with a power output from 300 watts.

Materials that can be worked
- Case-hardened steels
- Cast steel
- Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC)
- Steel
- Steel, cast steel
- Steels over 700 N/mm² (> 220 HB)
- Steels up to 1,200 N/mm² (< 38 HRC)
- Steels up to 700 N/mm² (< 220 HB)
- Tool steels

Applications
- Cutting out holes
- Deburring
- Leveling
- Milling
- Milling out
- Surface work
- Work on weld seams

Drive types
- Automated centres
- Drive spindle
- Flexible shaft drive
- Straight grinder
- Tool machine
