PFERD Tungsten Carbide Burrs are available in a variety of sizes and shapes, and consists of cuts suitable for coarse stock removal to fine finishing on numerous materials. PFERD milling tools are manufactured in compliance with the highest quality standards and offer outstanding quality, a long service life and excellent stock removal rates.

PFERD TOOLS has developed the NON-FERROUS cut for general-purpose use on non-ferrous metals and fibre-reinforced plastics. This cut is characterized by its high stock removal rate.

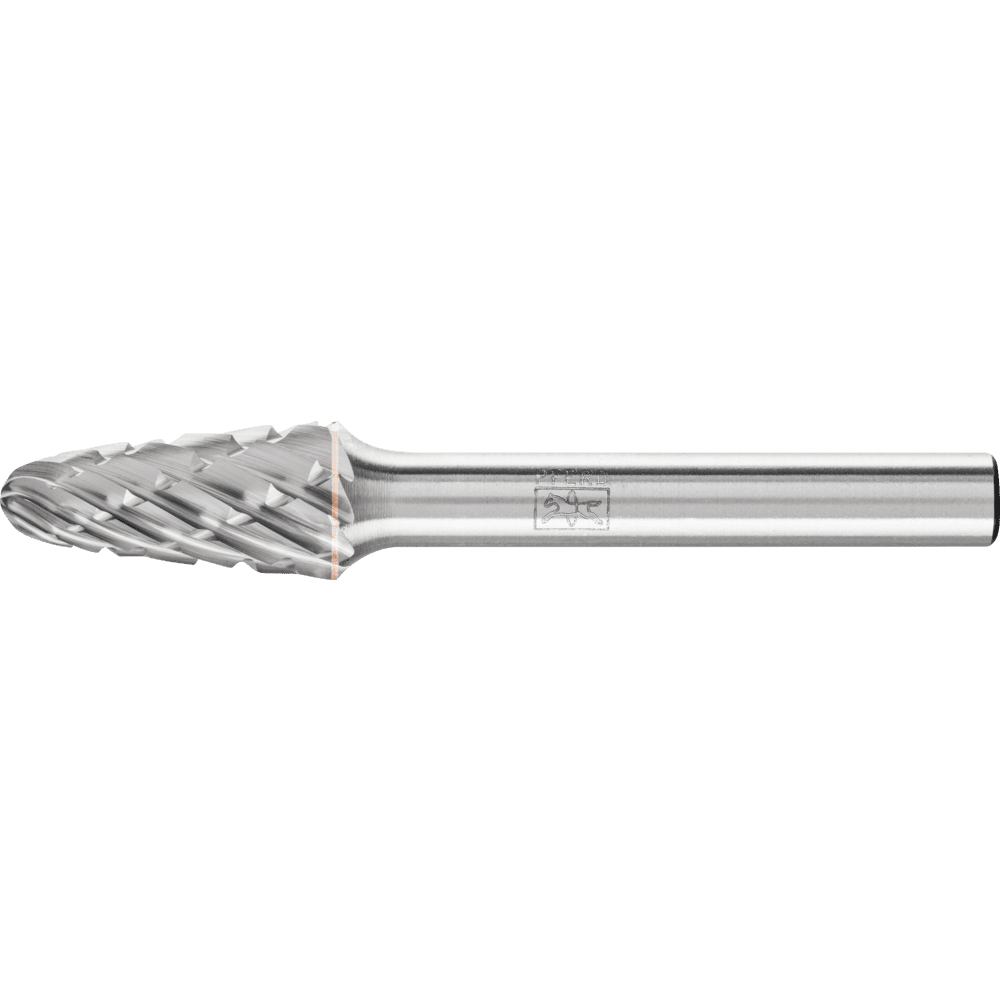

Conical burr with round radius end according to DIN 8032.

Advantages:
-Very good stock removal rate when used on non-ferrous metals such as brass and copper, plastics and fibre-reinforced plastics.
-The highly accurate concentricity enables impact free working without creating chatter marks. This considerably reduces wear on the tool and tool drive.

Specifications:
- Shape : Conical with radius end. (KEL)
- Head Diameter: 10mm
- Head Length: 20mm
- Shank Diameter: 6mm
- Overall Length including shank: 60mm

Operating Instructions:
- Observe the following recommended rotational speed:

• Hard non-ferrous metals: 19000 - 29000 RPM
• Soft non-ferrous metals: 14000 - 19000 RPM
• Thermoplastics, fibre-reinforced plastics (GRP/CRP): 19000 - 35000 RPM

- Maximum Overhang = 10mm
- Clamping Depth = 20mm
- For optimum performance use machines with a power output of 300 500 watts.
- Only use machines that are intended for use with the relevant tool.
- The burr surface in contact with the workpiece should not exceed 1/3 of the total burr circumference. This will prevent tooth breakage due to excessive vibration and chattering.
- Ensure correct and suitable personal protective equipment is worn while using the tool.

For further operating instructions or product information, please visit www.pferd.com or any of our social media pages.
