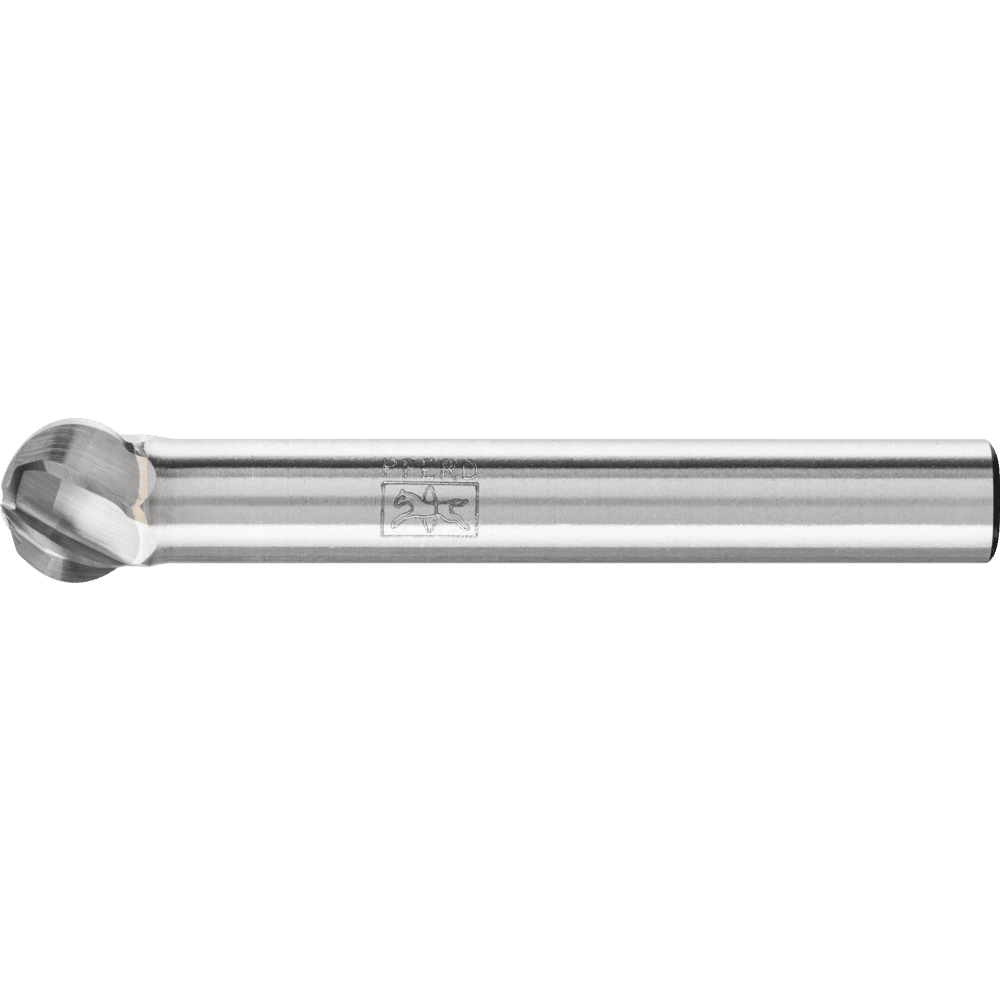

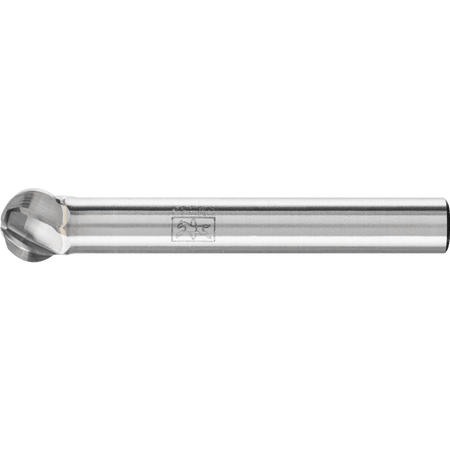

PFERD Tungsten Carbide Burr ALU Cut –Ball Shape 08mm x 07mm x 6mm shank

Barcode: 4007220869130
R 487.72 inc. VAT

Available for Delivery and Collection

Delivery Options:
- Door-to-door delivery via DSV Courier
- Delivery to DSV Locker

Collection Locations:
- PFERD Kempton Park Branch
- PFERD Pretoria Branch
- PFERD Durban Branch
- PFERD Cape Town Branch
- PFERD Gqeberha (Port Elizabeth)

Have a question? Ask an expert +27 11 230 4000 or email us sales@pferd.co.za

PFERD Tungsten Carbide Burrs are available in a variety of sizes and shapes, and consists of cuts suitable for coarse stock removal to fine finishing on numerous materials. PFERD milling tools are manufactured in compliance with the highest quality standards and offer outstanding quality, a long service life and excellent stock removal rates.


PFERD has further developed the ALU cut especially for stock removal on ALUMINIUM. This cut is characterized by its high stock removal rate. Tree-shaped burr with radius end according to DIN 8032


Advantages:

  • Extremely high stock removal rate.
  • Large chips.
  • Reduced material adhesion.
  • Long tool life and smooth running.
  • Can be used with cutting speeds of up to 1,100 m/min.
  • The highly accurate concentricity enables impact­ free working without creating chatter marks. This considerably reduces wear on the tool and tool drive.


Specifications:
- Shape: Ball Shape (KUD)
- Head Diameter: 8mm
- Head Length: 7mm
- Shank Diameter: 6mm
- Overall Length including shank: 47mm

Operating Instructions:
- Observe the following recommended rotational speed:

    • Aluminium Alloys: coarse stock removal : 24 000 – 44 000 RPM
    • Aluminium Alloys: fine stock removal : 36 000 – 44 000 RPM
    • Brass, copper, zinc: coarse stock removal : 24 000 – 44 000 RPM
    • Brass, copper, zinc: fine stock removal : 36 000 – 44 000 RPM
    • Hard Aluminium Alloys: coarse stock removals : 24 000 – 44 000 RPM
    • Hard Aluminium Alloys: fine stock removal : 36 000 – 44 000 RPM
    • Bronze: coarse stock removal: 24 000 - 44 000 RPM
    • Bronze: Alloys fine stock removal: 24 000 - 44 000 RPM
    • Thermo- , Fibre-reinforced plastic: 24 000 - 44 000 RPM

- Maximum Overhang = 10mm
- Clamping Depth = 20mm
- For optimum performance use machines with a power output of more than 300 watts.
- Only use machines that are intended for use with the relevant tool.
- The burr surface in contact with the workpiece should not exceed 1/3 of the total burr circumference. This will prevent tooth breakage due to excessive vibration and chattering.
- Ensure correct and suitable personal protective equipment is worn while using the tool.

For further operating instructions or product information, please visit www.pferd.com or any of our social media pages.
