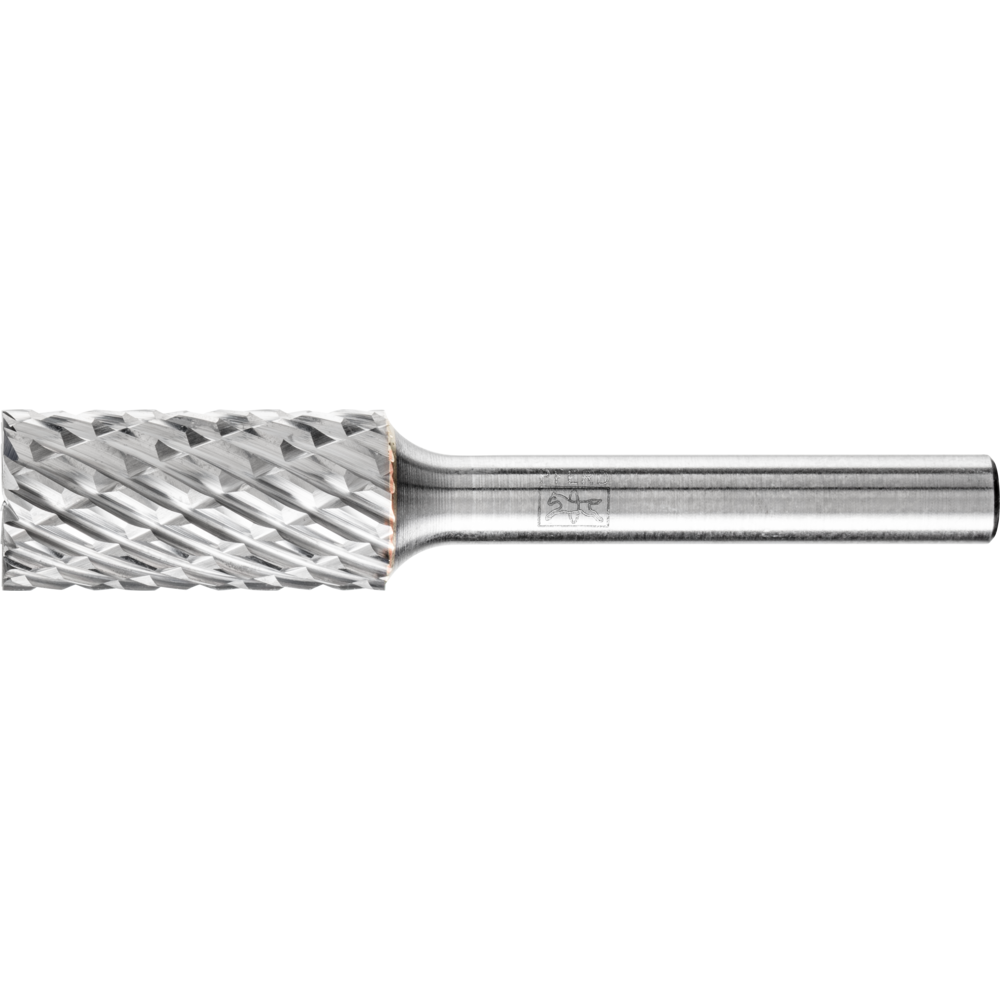

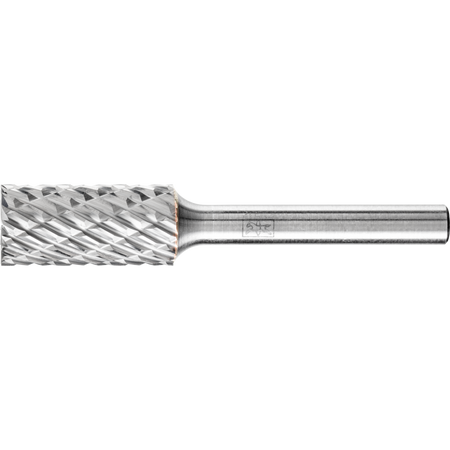

PFERD Tungsten Carbide Burr ALLROUND Cut – Cylindrical Shape 12mm x 25mm x 6mm shank
Available for Delivery and Collection
Delivery Options:
- Door-to-door delivery via DSV Courier
- Delivery to DSV Locker
FREE delivery on ALL orders during November 2024, ANYWHERE in South Africa.
Collection Locations:
- PFERD Kempton Park Branch
- PFERD Pretoria Branch
- PFERD Durban Branch
- PFERD Cape Town Branch
- PFERD Gqeberha (Port Elizabeth)
Have a question? Ask an expert +27 11 230 4000 or email us za_b2c@pferd.co.za
PFERD Tungsten Carbide Burrs are available in a variety of sizes and shapes, and consists of cuts suitable for coarse stock removal to fine finishing on numerous materials. PFERD milling tools are manufactured in compliance with the highest quality standards and offer outstanding quality, a long service life and excellent stock removal rates.
PFERD ALLROUND cut tungsten carbide burrs are specifically developed for versatile use on key materials such as steel and cast steel, stainless steel (INOX), non-ferrous materials and cast steels. The ALLROUND cut offers the same benefits as PFERD’s Cut 3 Plus cut (cross cut), but at 30% faster stock removal rate. The unique tooth geometry reduces the operational noise and vibration and so doing increases the overall operator comfort.
Advantages:
- Increased stock removal rates.
- Suitable for a variety of materials.
- Good stock removal performance and tool life.
- Suitable for Electric as well as Pneumatic Tool Drives.
- Minimal vibration and noise.
- Easy and comfortable handling.
Specifications:
- Shape: Cylindrical with End Cut (ZYAS)
- Head Diameter: 12mm
- Head Length: 25mm
- Shank Diameter: 6mm
- Overall Length including shank: 65mm
Operating Instructions:
- Observe the following recommended rotational speed:
- Steel and Cast Steel < 38 HRC : 12 000 – 20 000 RPM
- Steel and Cast Steel > 38 HRC : 7 000 – 12 000 RPM
- Stainless Steel :12 000 – 16 000 RPM
- Soft Non Ferrous Materials : 12 000 – 20 000 RPM
- Hard Non Ferrous Materials : 12 000 – 16 000 RPM
- Cast Iron : 12 000 – 24 000 RPM
- Maximum Overhang = 10mm
- Clamping Depth = 20mm
- For optimum performance use machines with a power output of more than 300 watts.
- Only use machines that are intended for use with the relevant tool.
- The burr surface in contact with the workpiece should not exceed 1/3 of the total burr circumference. This will prevent tooth breakage due to excessive vibration and chattering.
- Ensure correct and suitable personal protective equipment is worn while using the tool.
For further operating instructions or product information, please visit www.pferd.com or any of our social media pages.
