PFERD offers a range of mounted point points designed to meet individual grinding application needs. The broad range consists of various shapes, sizes, hardness, grits and grain types. PFERD mounted points are manufactured to ensure high dimensional accuracy and consistency.

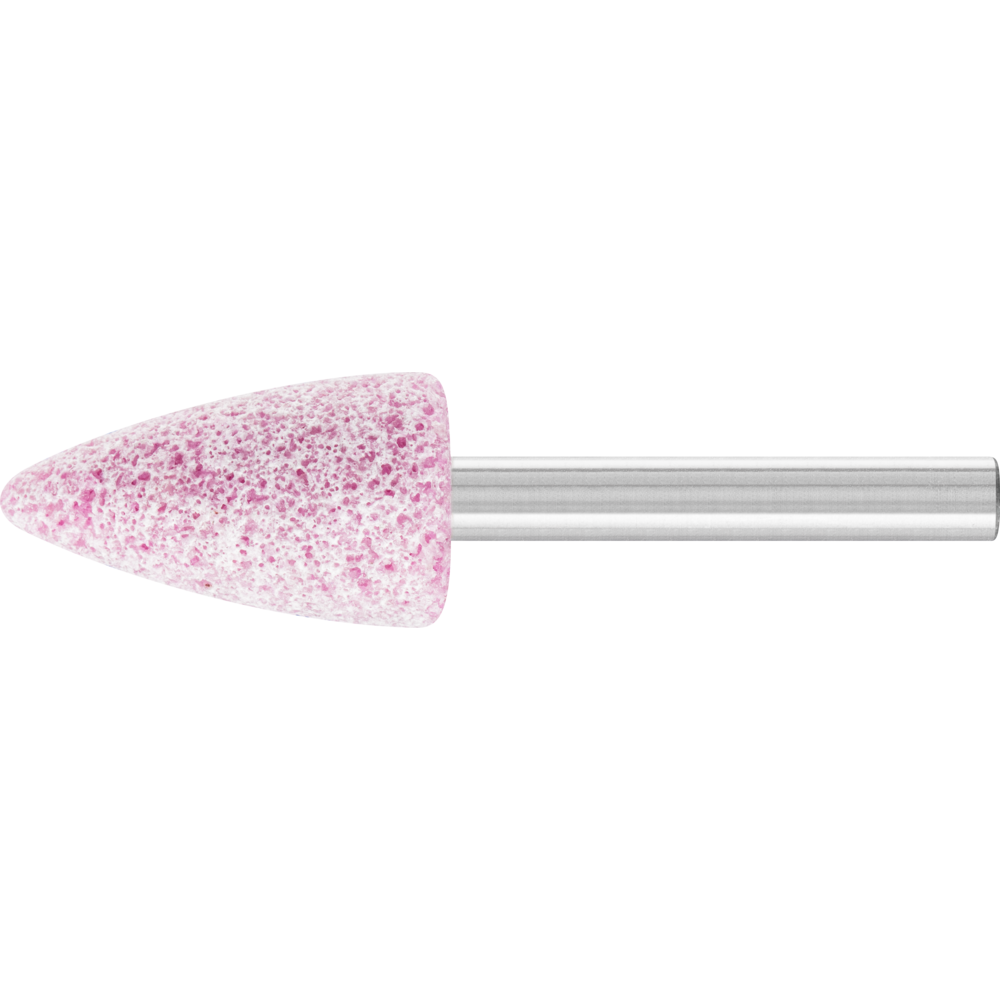

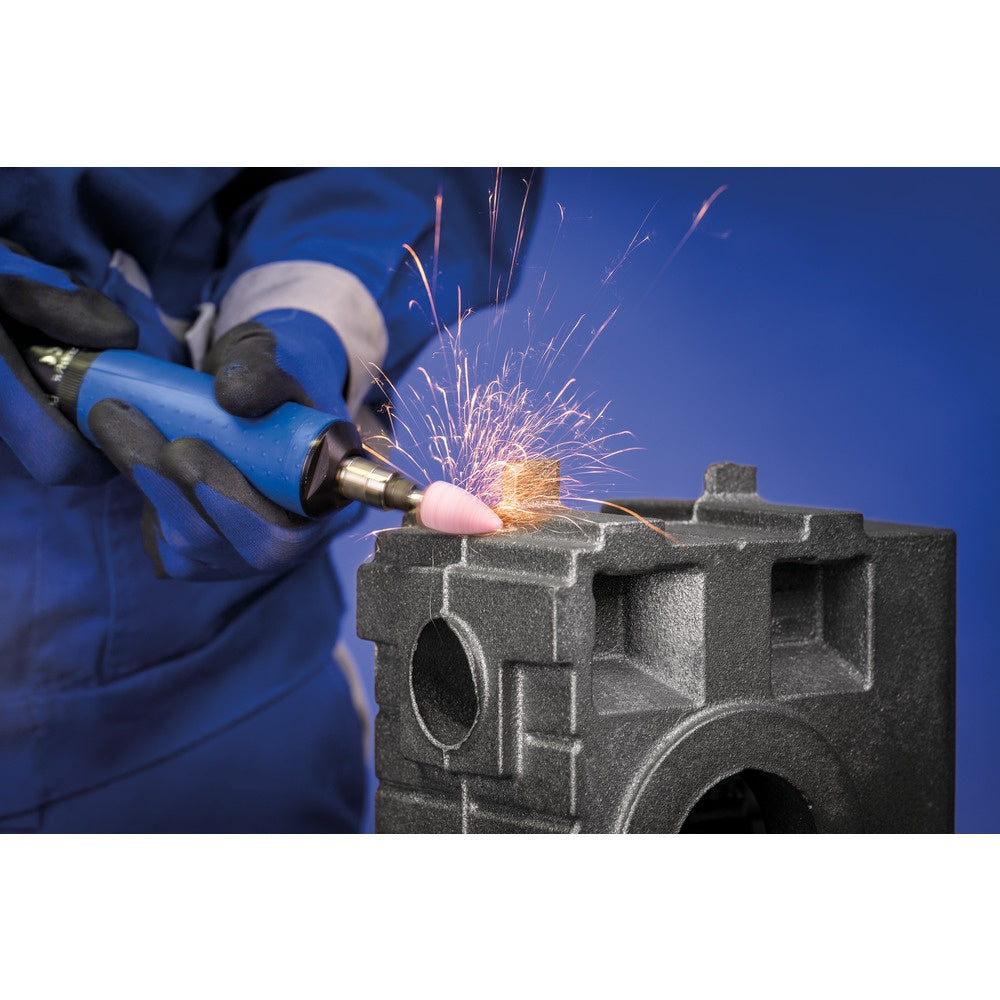

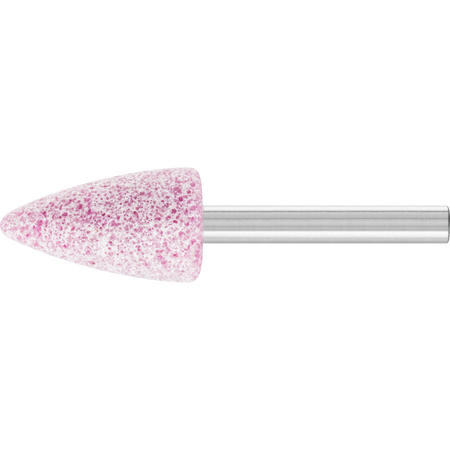

The STEEL EDGE type mounted point is manufactured using high quality pink Aluminium Oxide grain. It is particularly well suited for edge grinding and deburring work on steel and cast steel components.

Advantages:
- Highly suitable for steel and cast steel.
- Long tool life and low wear due to hard, dimensionally stable bond.
- Economical to use due to high edge stability even on low-speed tool drives.
- Particularly well suited for work on edges.
- Suitable for Electric as well as Pneumatic Tool Drives.
- STEEL EDGE mounted points perform best at a cutting speed of 25 – 40 m/s.

Specifications:
- Shape : A12
- Head Diameter: 17mm
- Head Length: 32mm
- Shank Diameter and length: 6mm x 40mm
- Grit : 30

Operating Instructions:
- Observe the recommended rotational speed. (Maximum 50 m/s or 54 500 RPM.)
- Maximum Overhang = 10mm
- Only use grinding machines that are intended for use with the relevant tool.
- Ensure correct and suitable personal protective equipment is worn while using the tool.

For further operating instructions or product information, please visit www.pferd.com or any of our social media pages.
