PFERD’s range of industrial power brushes meet a high standard of quality and safety, which is constantly monitored and further developed and improved. As one of the leading manufacturers of brush tools, PFERD fulfils the requirements of EN 1083.

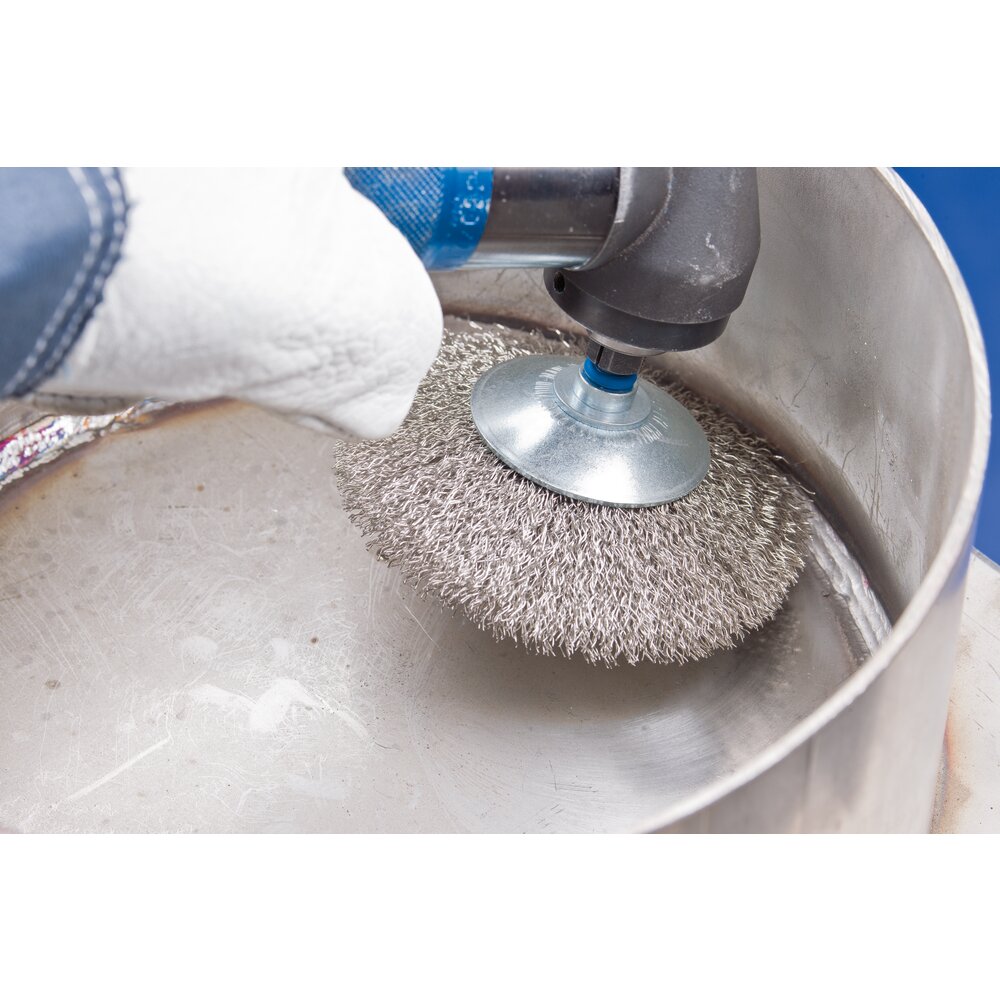

The KBUIT Bevel brush is excellent for medium-duty brushing such as deburring, cleaning, and removal of heat discolouration.

In addition to brushes with a stainless steel filament, PFERD TOOLS also offers brushes for work on stainless steel (INOX) with the INOX-TOTAL type. They are particularly well-suited to use in extremely critical environments.

In order to fulfil the particular requirements for working with stainless steel (INOX), PFERD TOOLS uses wire quality 1.4310 (V2A) for all INOX brushes. Practical experience from industry has shown that this offers very good corrosion resistance with an optimum tool life. All PFERD TOOLS brushes with INOX filaments are colour-coded in blue and are suitable for use on all stainless steels (INOX), such as V4A. The wire quality 1.4310 tends to become ferromagnetic in the case of cold working; i.e. it can be attracted using magnets. The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion.

Stainless steel wire (INOX) withstands temperatures up to 450 °C.

Advantages:
- Optimal access to hard-to-reach areas such as inner edges, grooves and keyways.
- Highly flexible, enabling optimal adjustment to the workpiece contour.
- Maximum protection against corrosion as all components are produced from stainless steel (INOX) in quality 1.4310 (V2A).
- Very good corrosion resistance.
- Creates fine surfaces.
- The brush is degreased and does not leave any oil residue on the workpiece.

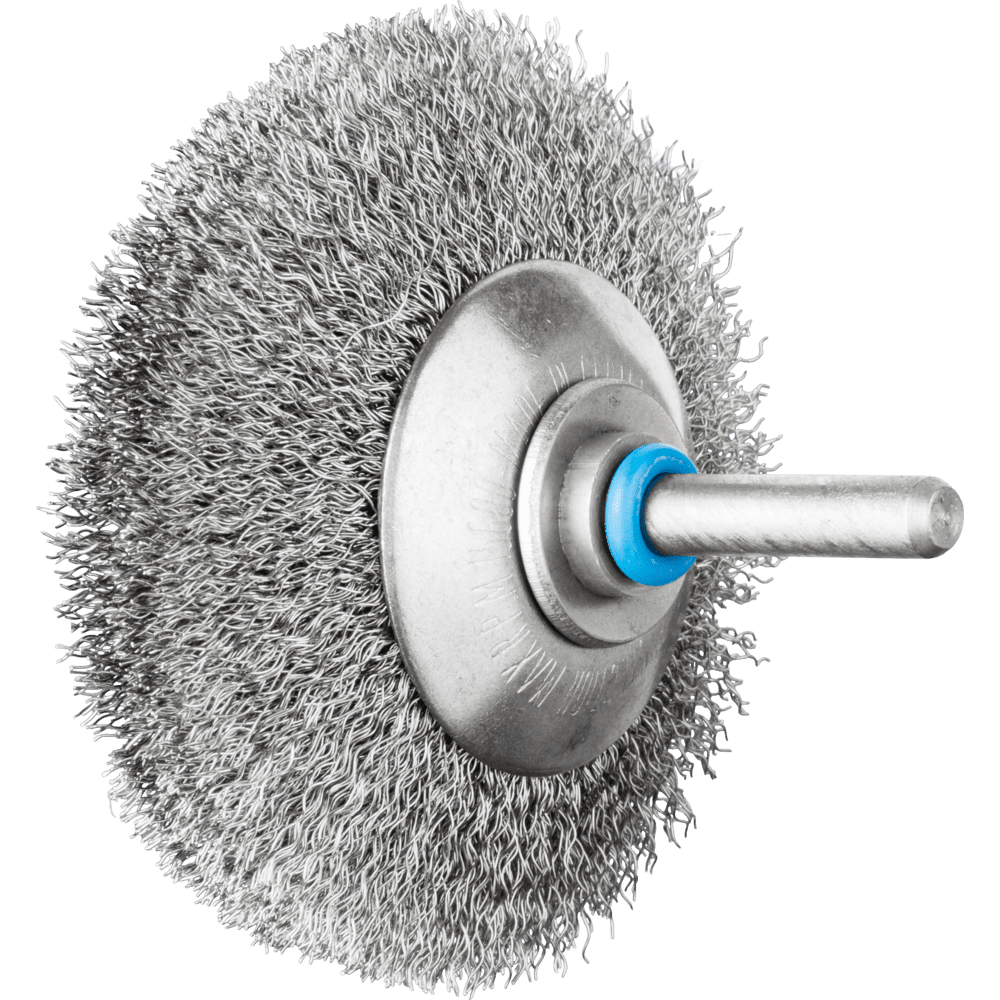

Specifications:
- Shape: Wheel
- Size: 70mm x 10mm
- Shank Size: 6mm diameter.
- 0.20mm gauge wire
- All parts of the brush are made of stainless steel.

Operating instruction:
- Observe the recommended rotational speed – Maximum operating speed is: 15 000 RPM
- Ensure correct and suitable personal protective equipment is worn while using the tool.
- Optimum operating RPM: 6 000 - 9800 RPM.
- Optimum performance achieved on machines with a power output of > 300w.
- Only use machines that are intended for use with the relevant tool.
- Avoid material cross contamination.

Safety Notes:
When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This applies in particular for use in the high rotational speed range. The minimum clamping length is 10 mm.

For further operating instructions or product information, please visit www.pferd.com or any of our social media pages.
