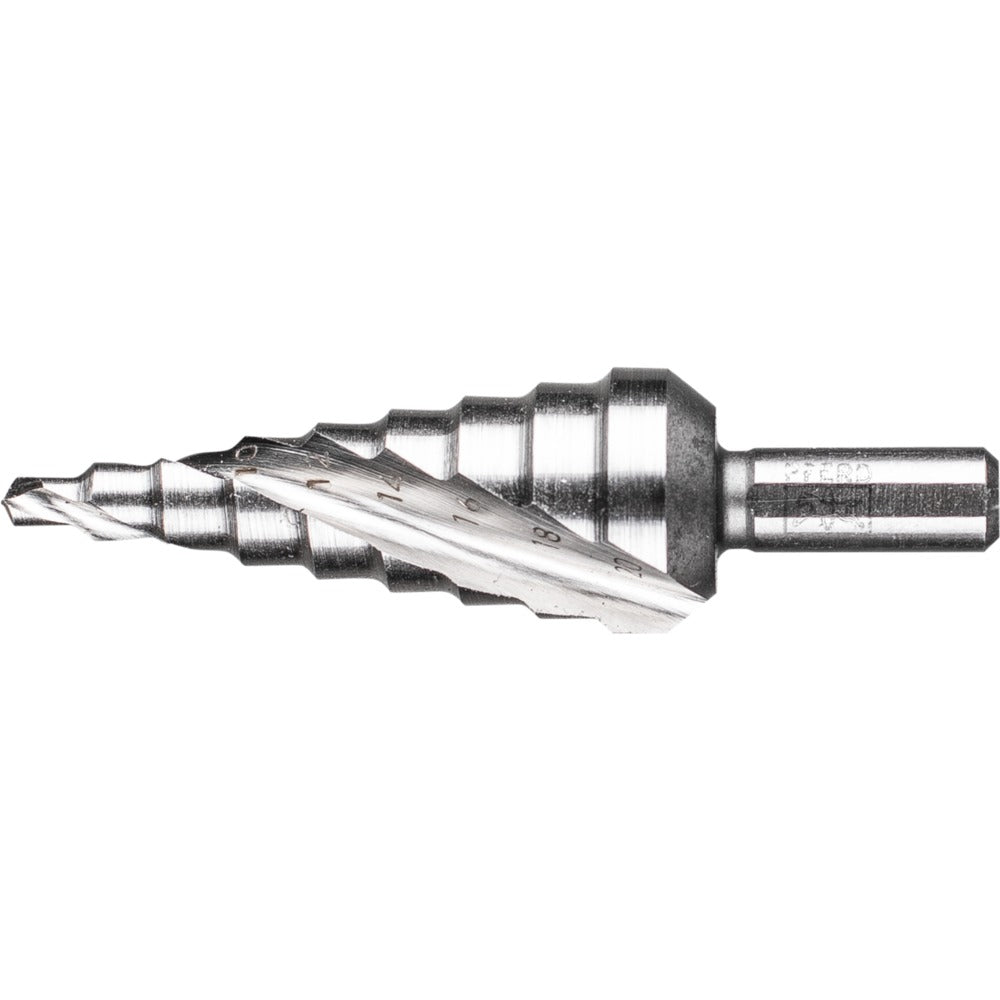

PFERD HSS Step Drill 4mm-20mm drilling range in 9 steps
Regular price
R 1,224.98
inc. VAT
Available for Delivery and Collection
Delivery Options:
- Door-to-door delivery via DSV Courier
- Delivery to DSV Locker
FREE delivery for orders over R750, anywhere in South Africa.
R99 delivery for orders under R750.
Collection Locations:
- PFERD Kempton Park Branch
- PFERD Pretoria Branch
- PFERD Durban Branch
- PFERD Cape Town Branch
- PFERD Gqeberha (Port Elizabeth)
Have a question? Ask an expert +27 11 230 4000 or email us za_b2c@pferd.co.za
PFERD Step Drills are sturdy high-performance tools for burr-free drilling and deburring of sheet metal, pipes and profiles. Materials up to 4 mm thick can be drilled and deburred easily in a single step. PFERD also offers step drills with a high-quality HICOAT coating. To ensure reliable torque transmission, all step drills have a three-surface shaft.
Advantages:
- Drilling and deburring in a single step.
- Completely smooth running and a high cutting performance.
- The high-quality drill tip ensures effortless centring and drilling.
- The tool taper makes it easier to pull back from drilled plates.
- Chips which do not break are neatly removed as with a spiral drill.
- Built-up edges and cold welding on the blades are prevented.
Materials that can be worked:
- Steel
- Cast steel
- Stainless steel (INOX)
- Non-ferrous metals
- Plastics
Applications:
- Drilling
- Deburring
Recommendations for use:
- Only use machines that are intended for use with the relevant tool.
- Ensure correct Personal Protective Equipment is worn while using the tool.
- Use HSS step drills on sheets, pipes and profiles with a maximum thickness of 4 mm.
- Use cutting oil/compressed air as a coolant and lubricant in the case of step drills without a coating. (Smoother drilling action and extended service life.)
- Avoid material cross contamination.
Operating Instructions:
- Observe the following specifications and recommended rotational speeds:
STB HSS 04-20/8 - Step Drill Bit HSS
Number of drill steps : 9
Drilling diameter: 4mm to 20mm
Shank diameter: 8mm
Overall Length : 75mm
Advantages:
- Drilling and deburring in a single step.
- Completely smooth running and a high cutting performance.
- The high-quality drill tip ensures effortless centring and drilling.
- The tool taper makes it easier to pull back from drilled plates.
- Chips which do not break are neatly removed as with a spiral drill.
- Built-up edges and cold welding on the blades are prevented.
Materials that can be worked:
- Steel
- Cast steel
- Stainless steel (INOX)
- Non-ferrous metals
- Plastics
Applications:
- Drilling
- Deburring
Recommendations for use:
- Only use machines that are intended for use with the relevant tool.
- Ensure correct Personal Protective Equipment is worn while using the tool.
- Use HSS step drills on sheets, pipes and profiles with a maximum thickness of 4 mm.
- Use cutting oil/compressed air as a coolant and lubricant in the case of step drills without a coating. (Smoother drilling action and extended service life.)
- Avoid material cross contamination.
Operating Instructions:
- Observe the following specifications and recommended rotational speeds:
STB HSS 04-20/8 - Step Drill Bit HSS
Number of drill steps : 9
Drilling diameter: 4mm to 20mm
Shank diameter: 8mm
Overall Length : 75mm
- Steel and Cast Steel up to 700 N/mm2: 2 400 (4mm) - 320 (20mm) RPM
- Hard Non Ferrous Metals: 2 400 (4mm) - 320 (20mm) RPM
- Soft Non Ferrous Metals: 2 400 (4mm) - 320 (20mm) RPM
- Plastics and Other Materials: 1 600 (4mm) – 160 (20mm) RPM
