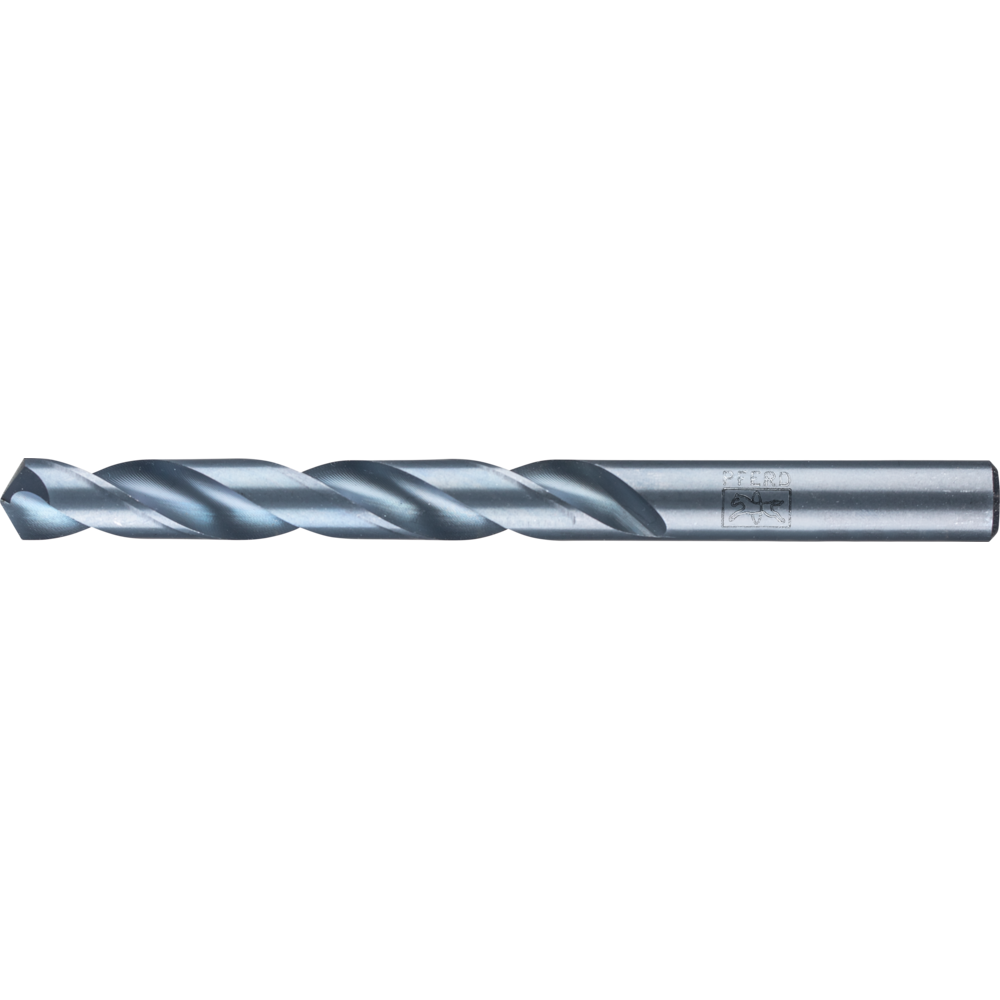

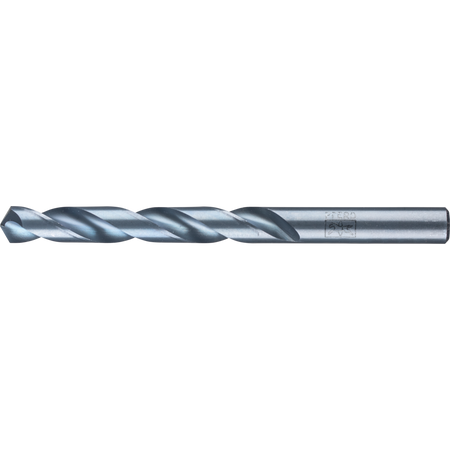

PFERD HSS Spiral Drill 12.5mm STEEL
Regular price
R 203.09
inc. VAT
Available for Delivery and Collection
Delivery Options:
- Door-to-door delivery via DSV Courier
- Delivery to DSV Locker
FREE delivery on ALL orders during November 2024, ANYWHERE in South Africa.
Collection Locations:
- PFERD Kempton Park Branch
- PFERD Pretoria Branch
- PFERD Durban Branch
- PFERD Cape Town Branch
- PFERD Gqeberha (Port Elizabeth)
Have a question? Ask an expert +27 11 230 4000 or email us za_b2c@pferd.co.za
PFERD spiral drills are fully ground, right-hand turning versions that produces precise drilled holes due to its high concentricity and exact centring. PFERD offers spiral drills in STEEL (118° point angle) and INOX (135° point angle) types suitable for industrial use.
All PFERD drills are completely ground spiral drills. They are ground both in the chip flute and guide chamfer as well as the drill tip. All PFERD drills are also cross ground. This makes the drill suitable for highly precise positioning on the workpiece and supports centring during the drilling application.
Advantages:
- Suitable for universal use on steel, cast steel, grey cast iron, annealed cast iron, bronze, brass, plastics and aluminium.
- Easy Centring.
- Long Tool life.
- Good Chip Removal.
- Consistent diameter throughout drill bit length.
Specifications:
- Diameter : 12,5mm
- STEEL HSSG (M2) version
- 118° Point Angle
- Helix Angle : 25 – 30°
- Spiral Drill Length : 101mm
- Overall Length : 151mm
Operating Instructions:
- Observe the following recommended rotational speed:
- When cutting metals, use suitable cutting fluid or cooling fluid. (Smoother drilling action and extended service life.)
- Ensure correct Personal Protective Equipment is worn while using the tool.
For further operating instructions or product information, please visit www.pferd.com or any of our social media pages.
All PFERD drills are completely ground spiral drills. They are ground both in the chip flute and guide chamfer as well as the drill tip. All PFERD drills are also cross ground. This makes the drill suitable for highly precise positioning on the workpiece and supports centring during the drilling application.
Advantages:
- Suitable for universal use on steel, cast steel, grey cast iron, annealed cast iron, bronze, brass, plastics and aluminium.
- Easy Centring.
- Long Tool life.
- Good Chip Removal.
- Consistent diameter throughout drill bit length.
Specifications:
- Diameter : 12,5mm
- STEEL HSSG (M2) version
- 118° Point Angle
- Helix Angle : 25 – 30°
- Spiral Drill Length : 101mm
- Overall Length : 151mm
Operating Instructions:
- Observe the following recommended rotational speed:
- Steel and Cast Steel < 220HB : 637 - 892 RPM
- Steel and Cast Steel > 220HB : 510 - 637 RPM
- Hard Non Ferrous Metals : 637 - 1 274 RPM
- Soft Non Ferrous Metals : 764 - 1 529 RPM
- Cast Iron : 255 - 637 RPM
- Plastics and Other Materials : 382 - 1 019 RPM
- When cutting metals, use suitable cutting fluid or cooling fluid. (Smoother drilling action and extended service life.)
- Ensure correct Personal Protective Equipment is worn while using the tool.
For further operating instructions or product information, please visit www.pferd.com or any of our social media pages.
