PFERD Ceramic oxide POLIFAN CURVE 115mm x 60 Grit – M (5mm)
Available for Delivery and Collection
Delivery Options:
- Door-to-door delivery via DSV Courier
- Delivery to DSV Locker
FREE delivery for orders over R750, anywhere in South Africa.
R99 delivery for orders under R750.
Collection Locations:
- PFERD Kempton Park Branch
- PFERD Pretoria Branch
- PFERD Durban Branch
- PFERD Cape Town Branch
- PFERD Gqeberha (Port Elizabeth)
Have a question? Ask an expert +27 11 230 4000 or email us za_b2c@pferd.co.za
PFERD’s range of POLIFAN Flap Discs are manufactured and tested in accordance with the strictest quality requirements. As a founding member of the Organisation for Safety of Abrasives, PFERD is committed to conform to tougher inspection requirements which even goes beyond international recognised EN 13743 safety standards.

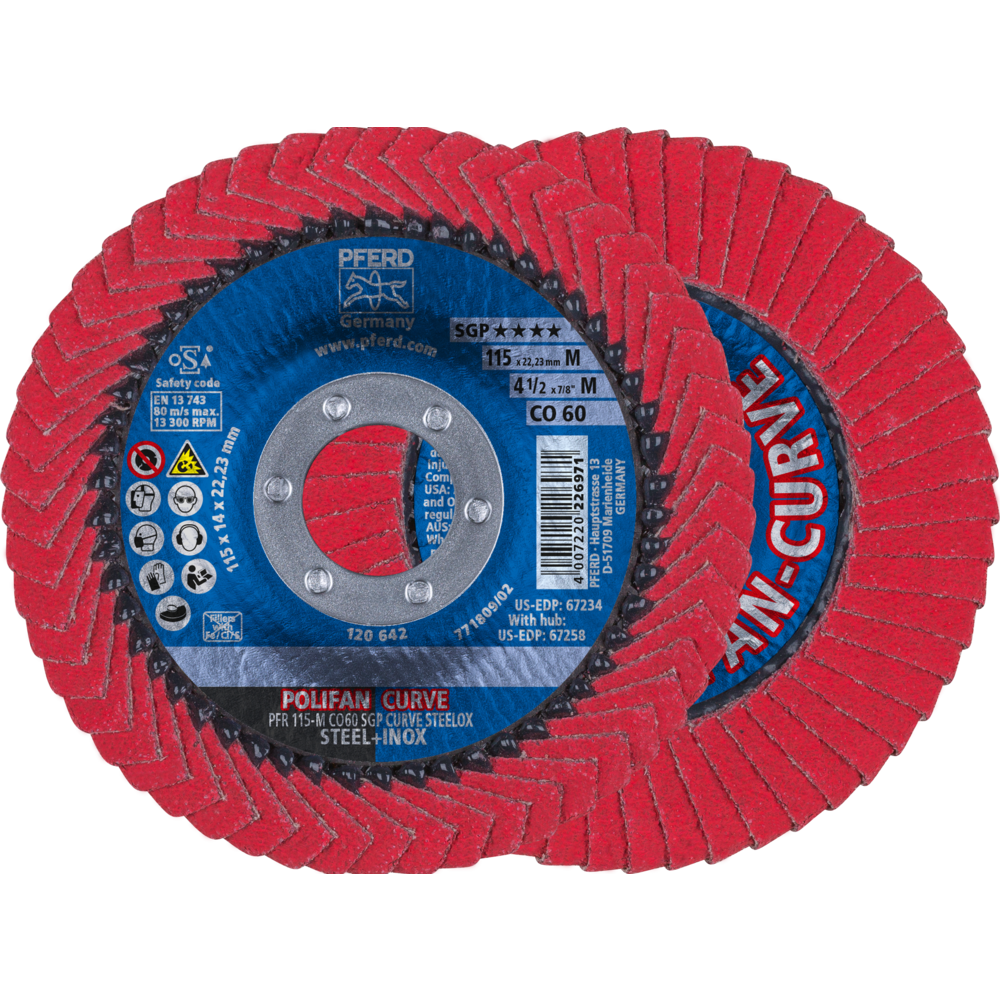

The patented flap disc POLIFAN-CURVE has been specially developed for work on fillet welds. The POLIFAN CURVE has abrasive flaps on both the grinding side and on the rear side, as well as on the radius. The POLIFAN CURVE is available in two thicknesses suited for different fillet weld sizes and various grain types and grit sizes are available. (Fillet Weld Radius: 5mm and 8mm) This makes the POLIFAN CURVE the ideal solution for various materials and applications such as fillet weld grinding, weld dressing, chamfering, and deburring.
Advantages:
- High Stock Removal.
- Increased processing time.
- Good service life.
- Precise and optimum grinding of the fillet weld geometry.
- Suited for Steel and Stainless Steel as the product is manufactured without addition of ferrous, chlorinated, or sulphurous fillers.
- Once abrasive on the edge / radius of the disc has been worn, the disc can be used as a conventional flap disc.
- Suitable for electric and pneumatic tool drives.
Specifications:
- Size: 115mm x 22,23mm.
- Thickness: 11mm
- Fillet Weld Radius suitability: >5mm
- Fillet Weld throat thickness: ≤ 6mm with a 90° joint.
- Grit Size: 60
- Abrasive Grain: Ceramic Oxide
Operating instruction:
- Observe the recommended rotational speed – Maximum operating speed is: 80m/s or 13 300 RPM
- Only use grinding machines that are intended for use with the relevant tool.
- Avoid material cross contamination.
- Ensure correct and suitable personal protective equipment is worn while using the tool.
- With POLIFAN flap discs, a grit size that is one grade coarser can be selected to achieve the same surface finish as with fibre discs.
For further operating instructions or product and safety information, please visit www.pferd.com or any of our social media pages.
