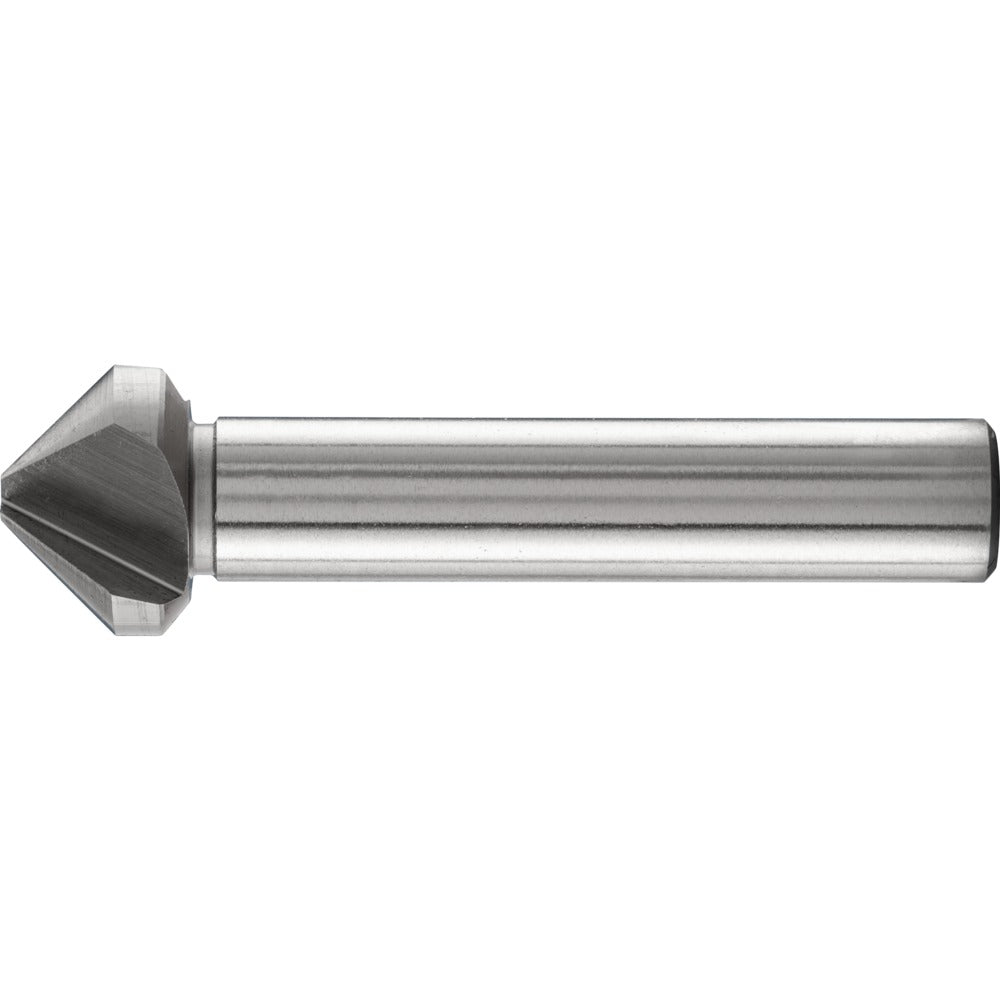

PFERD 90° HSS conical countersink – 16.5mm Co5 Type
Regular price
R 357.02
inc. VAT
Available for Delivery and Collection
Delivery Options:
- Door-to-door delivery via DSV Courier
- Delivery to DSV Locker
FREE delivery for orders over R750, anywhere in South Africa.
R99 delivery for orders under R750.
Collection Locations:
- PFERD Kempton Park Branch
- PFERD Pretoria Branch
- PFERD Durban Branch
- PFERD Cape Town Branch
- PFERD Gqeberha (Port Elizabeth)
Have a question? Ask an expert +27 11 230 4000 or email us za_b2c@pferd.co.za
PFERD offers a range of HSS Conical Countersinks in various diameters. PFERD conical countersinks are characterised by their particularly sharp, right-hand, cutting edges that are able to achieve a very good performance and an extended service life even at low cutting speeds. These countersinks are suitable for a range of materials and numerous applications including Chamfering, Deburring and general countersinking.
Advantages:
- Very high stock removal rate and optimum chip removal.
- Suitable for a variety of materials in particular tough and hard materials such as alloyed and high-strength steel and stainless steel. (INOX)
- Very good temperature resistance due to Co content.
- Good stock removal performance and tool life.
- Burr-free results, even at low cutting speeds.
- High quality surface finish of workpiece.
- Suitable for Electric as well as Pneumatic Tool Drives.
- Easy and comfortable handling.
Specifications:
- Head Diameter: 16,5mm
- 90° Countersink Angle.
- Shank Diameter: 10mm
- Overall Length including shank: 60mm
Operating Instructions:
- Observe the following recommended rotational speed:
- When cutting metals, use suitable cutting fluid or cooling fluid. (Smoother drilling action and extended service life.)
-When working on stainless steel (Inox) remove all particles which develops during the application from the workpiece and ensure to clean the workpiece chemically or mechanically to reduce the risk of corrosion.
- Ensure correct and suitable personal protective equipment is worn while using the tool.
For further operating instructions or product information, please visit www.pferd.com or any of our social media pages.
Advantages:
- Very high stock removal rate and optimum chip removal.
- Suitable for a variety of materials in particular tough and hard materials such as alloyed and high-strength steel and stainless steel. (INOX)
- Very good temperature resistance due to Co content.
- Good stock removal performance and tool life.
- Burr-free results, even at low cutting speeds.
- High quality surface finish of workpiece.
- Suitable for Electric as well as Pneumatic Tool Drives.
- Easy and comfortable handling.
Specifications:
- Head Diameter: 16,5mm
- 90° Countersink Angle.
- Shank Diameter: 10mm
- Overall Length including shank: 60mm
Operating Instructions:
- Observe the following recommended rotational speed:
- Rust and acid resistant metals (Inox) : 190 - 290 RPM
- Steel and Cast Steel < 220HB : 290 - 380 RPM
- Steel and Cast Steel > 220HB : 190 - 290 RPM
- Hard Non Ferrous Metals : 190 - 380 RPM
- Soft Non Ferrous Metals : 290 - 380 RPM
- Cast Iron : 190 RPM
- Plastics and Other Materials : 190 - 290 RPM
- When cutting metals, use suitable cutting fluid or cooling fluid. (Smoother drilling action and extended service life.)
-When working on stainless steel (Inox) remove all particles which develops during the application from the workpiece and ensure to clean the workpiece chemically or mechanically to reduce the risk of corrosion.
- Ensure correct and suitable personal protective equipment is worn while using the tool.
For further operating instructions or product information, please visit www.pferd.com or any of our social media pages.
