PFERD diamond cut-off wheels are manufactured in compliance with the highest quality and safety standards. They guarantee optimum cutting results and allow efficient processing of different materials, e.g. concrete, exposed aggregate concrete, clinker brick, hard stone, granite and other abrasive building materials. The product range offers the best tool for any application.

General-purpose continuous-rim tool for easy cutting (TURBO) with high cutting performance and a good tool life.

Advantages:

• High diamond qualities.
• Excellent cutting characteristics and short cutting times.
• Long tool life.
• High ease of cutting.
• High economic efficiency.

Specifications:
- Materials that can be worked include Concrete, Brick, Soft Clinker Brick, Sand-lime Brick.

-Multipurpose segmented tool for aggressive, fast cutting with high cutting performance and a long tool life.

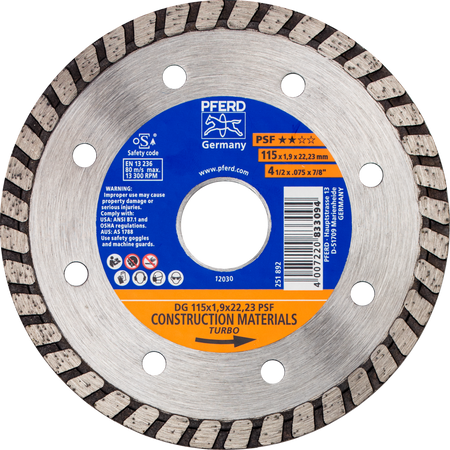

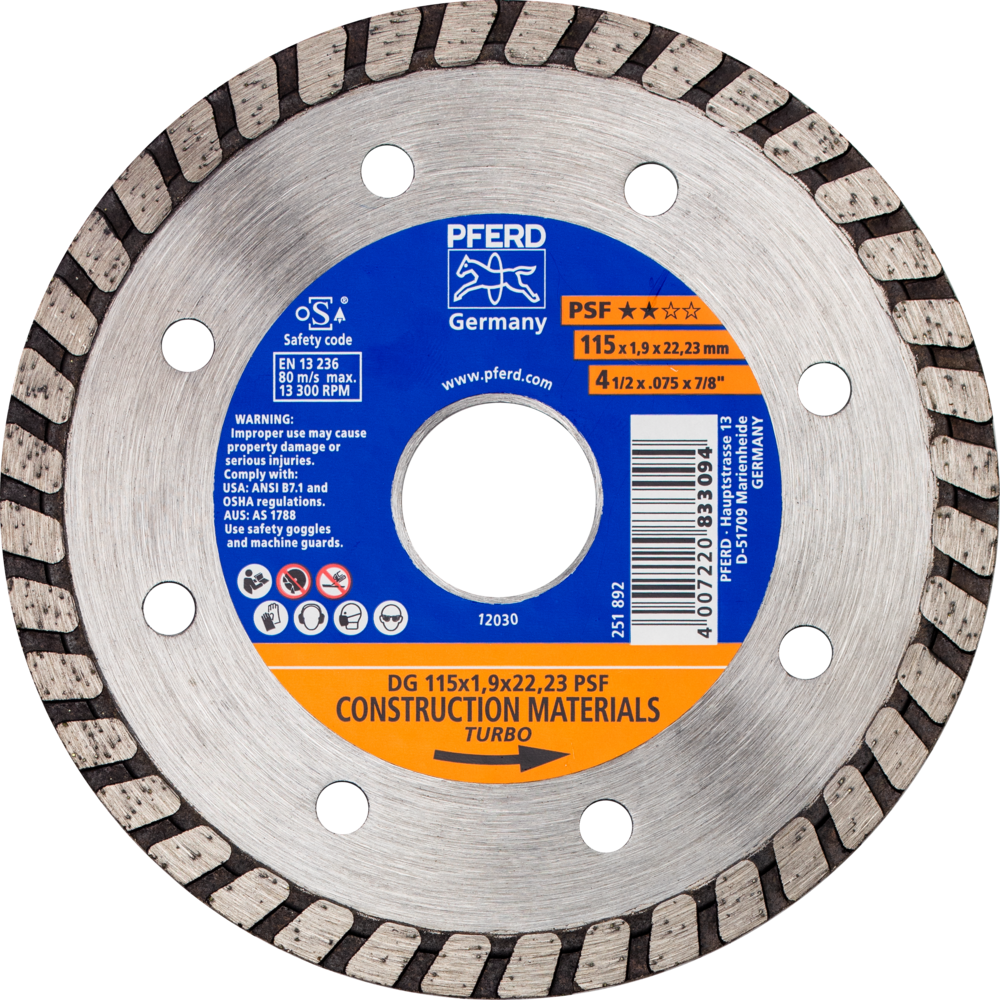

- Segmented 115mm x 1.9mm x 22,23mm Diamond Cutting Disc (DG 115 x 1.9 x 22,23 PSF)

Operating instruction:
- Observe the recommended rotational speed – Maximum operating speed is : 80m/s or 13 300 RPM
- Where possible, wet grinding is recommended as this will reduce the tool wear, risk of thermal damage as well as dust.
- Cut using low pressure in order to avoid excessive thermal damaged due to overheating.
- Ensure correct and suitable Personal Protective Equipment is worn when using the tool.
- Only use grinding machines that are intended for use with the relevant tool.

For further operating instructions or product information, please visit www.pferd.com.
